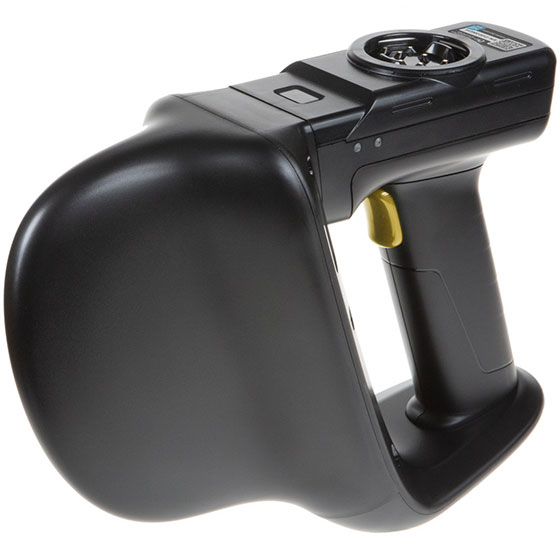

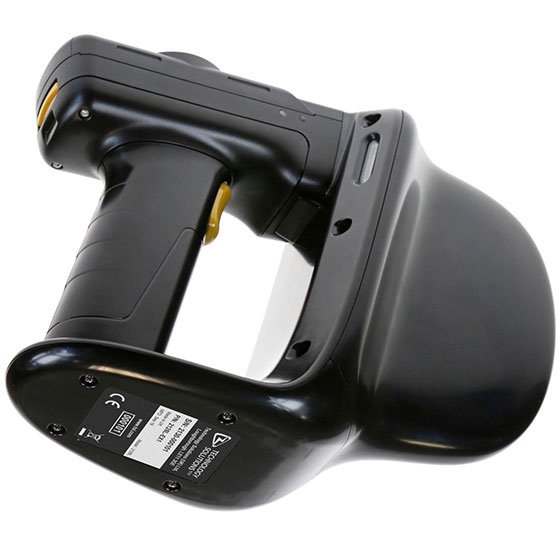

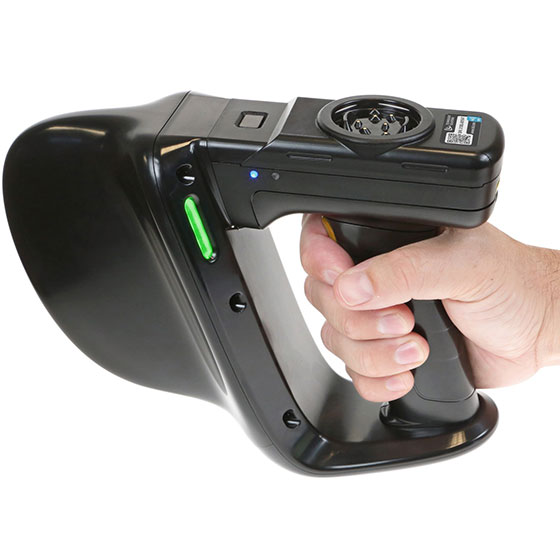

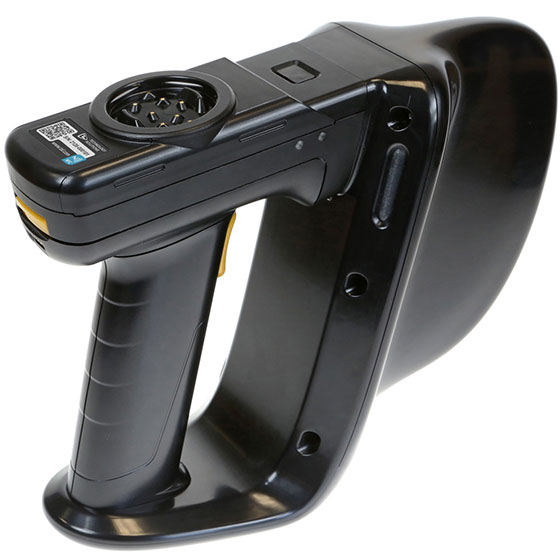

The TSL 2128L-AX1 Wide Area UHF Mobile RFID Sled builds upon the 2128 UHF Reader by including a larger, fixed High Gain Linear antenna for up to 15m (49ft) of read range that is ideal for retail applications. The patented TSL ePop-Loq connector allows data and charge connections to be passed from the reader to an attached device, such as a smartphone or handheld terminal. The unique ePop-Loq system is also designed to safely separate when the reader is subject to large impacts, such as when dropped.
The 2128L UHF RFID Sled supports both Bluetooth Classic as well as Bluetooth Low Energy (BLE). The reader can be operated in a Serial Port Profile (SPP) or in a Human Interface Device mode (HID), as well as supporting iApp2 for Apple iOS devices. The reader also supports an automatic re-connect mode for both Android and Apple devices.
What's Included:
- TSL 2128L Wide Area RFID Sled
- Integrated 6700 mAh Lithium Polymer Battery
Note: The TSL 2128L RFID Sled DOES NOT HAVE A BARCODE SCANNER
- Frequency Range US: 902-928MHz; Up to 28 dBm (region dependant) + 7.0 dBi Antenna
- Linear UHF Antenna with field shaping
- Standards Supported: EPC Class 1 Gen 2
- Nominal Read Range: ~49 ft / ~15 m
- Dimensions: 6.3 in. H x 3.0 in. W x 2.5 in. L
- Weight: 24.7oz / 700g
- Drop Spec: Multiple 4 ft./1.2 m drops to concrete, IP54 Sealing
- Bluetooth Version 4.2, USB connection to handheld terminal via ePop-Loq cases (separate purchase)
2128 Spec Sheet
Your TSL 2128L mobile RFID reader is warrantied against defects in workmanship and materials for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions.
What devices does the 2128 RFID Sled work with?
The 2128 currently supports the Zebra TC20/TC25, TC52/TC57, and Janam XT30/XT40 with the ePop-Loq adapter case along with most Android and iOS devices using a Bluetooth Connection.
What is needed to use the TSL 2128 sled to read RFID tags?
You will need a compatible device as mentioned above and software that is capable of collecting and storing RFID data.
TracerPlus is RFID enabled data collection software allowing you to create RFID ready applications in minutes.
2128L Quick Start Guide
2128L User Guide
