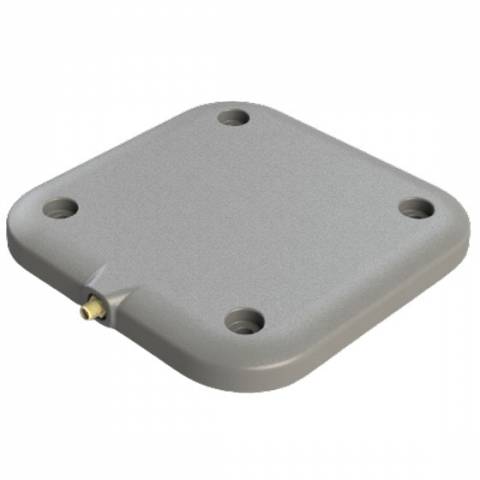

Times-7 A5020LX-72386 Ultra-low Profile Linear Extreme UHF RFID Antenna

The Times-7 A5020LX-72386 Slimline Linear Extreme RFID Antenna is a high-performing member of the A5020 product family. This Linear Polarized configuration is ideal for use in rugged and extreme conditions due to it's IP69k rated sealant. At 6.00 x 6.00 inches and less than 1.00 inch thick, the %ShortName% allows for versatile mounting configurations in the tightest spaces.

Like other Slimline antenna models, the performance of the unit is excellent, offering 5 dBic of gain within the frequency of 902-928 Mhz and is fitted with a fixed, side entry SMA-Female connector.

Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>

The A5020 is an ultra-low-profile, linear polarized antenna for use in passive UHF RFID systems in the 902-928 Mhz FCC band. This antenna offers 100 degrees of beamwidth in the horizontal plane and 105 degress in the vertical plane, in a super low-profile package.

Find RFID Tags to use with your Fixed RFID Readers >>

What's Included:

• A5020LX-72386 Slimline Linear Extreme UHF RFID Antenna with SMA-Female Connector

Note: Requires RPTNC Male to Standard SMA Male cable to connect to Zebra and Impinj RFID Readers.

Please note all Times-7 Antennas are NON-CANCELABLE / NON-RETURNABLE.

Times-7 A5020LX-72386 Antenna Specifications
