Times-7 A5530C-71644 2x4 Ft Circular Polarized RFID Ground Mat Antenna

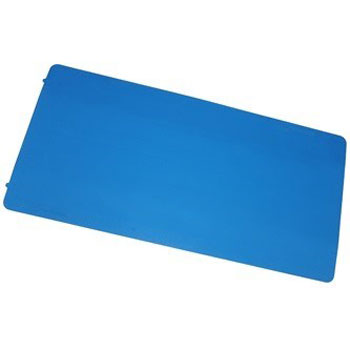

The Times-7 A5530C-71644 SlimLine RFID Ground Mat Antenna is an ultra-low-profile floor mat antenna designed for use in environments where carts with items will roll over the surface so that they can be read. At less than a 1.00 inch thickness, the %ShortName% allows for lying on the ground while also being able to withstand 440 lbs of pressure, so you don't have to worry about about passing carts and payloads rolling over it.

Like other SlimLine antenna models, the performance of the unit is excellent, offering 9.5 dBic of gain within the frequency of 902-928 Mhz and is fitted with a fixed, side entry SMA-Female connector.

Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>

The A5530C is an ultra-low-profile, circularly polarized antenna for use in passive UHF RFID systems in the 902-928 Mhz FCC band. This antenna offers a 85 degree horizontal plane and an 13 degree vertical plane of beamwidth as well as an outstanding VSWR of 2.1:1 across the frequency spectrum, in a super low-profile package.

Find RFID Tags to use with your Fixed RFID Readers >>

What's Included:

• A5530C-71644 Slim Line Circularly Polarized RFID Ground Mat Antenna with SMA-Female Connector

Note: Requires RPTNC Male to Standard SMA Male cable to connect to Zebra and Impinj RFID Readers.

Please note all Times-7 Antennas are NON-CANCELABLE / NON-RETURNABLE.

Times-7 A5530C-71644 Antenna Specifications
