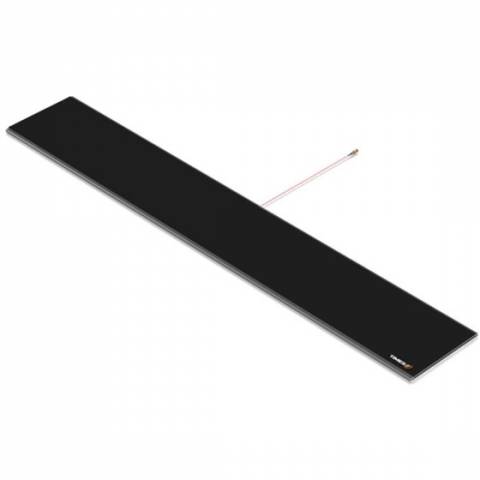

Times-7 A5531C-71741-FG Ultra-Low Profile SlimLine RFID Ground Antenna

The Times-7 A5531C-71741-FG SlimLine RFID Ground Antenna is an ultra-low-profile ground antenna for environments where it can lay flat on the ground. At less than a 1.00 inch thickness, The %ShortName% allows for lying on the ground while also being able to withstand 440 lbs of pressure, so you don't have to worry about about passing carts and payloads rolling over it. Like other SlimLine antenna models, the performance of the unit is excellent, offering 9.5 dBic of gain within the frequency of 902-928 Mhz and is fitted with a fixed, side entry SMA-Female connector.

Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>

The A5531C is an ultra-low-profile, circularly polarized antenna for use in passive UHF RFID systems in the 902-928 Mhz FCC band. This antenna offers a 85 degree horizontal plane and a 13 degree vertical plane of beamwidth as well as an outstanding VSWR of 2.0:1 across the frequency spectrum, in a super low-profile package.

Find RFID Tags to use with your Fixed RFID Readers >>

What's Included:

• A5531C-71741-FG Slim Line Circularly Polarized RFID Ground Antenna with SMA-Female Connector

Note: Requires RPTNC Male to Standard SMA Male cable to connect to Zebra and Impinj RFID Readers.

Please note all Times-7 Antennas are NON-CANCELABLE / NON-RETURNABLE.

Times-7 A5531C-71741-FG Antenna Specifications
