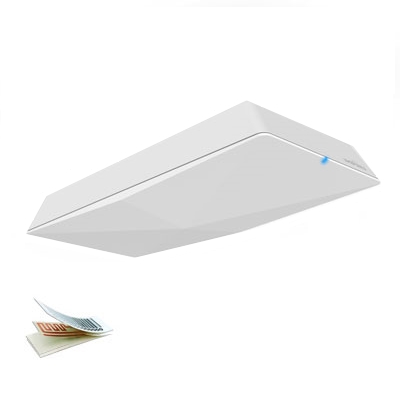

The PTS Check-In / Check-Out Kit consists of the Impinj xSpan Gateway Reader and ClearStream RFID Software.

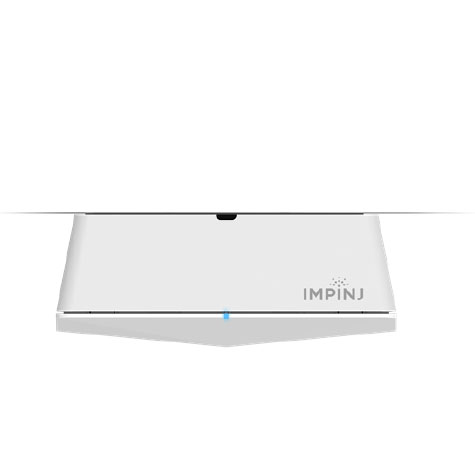

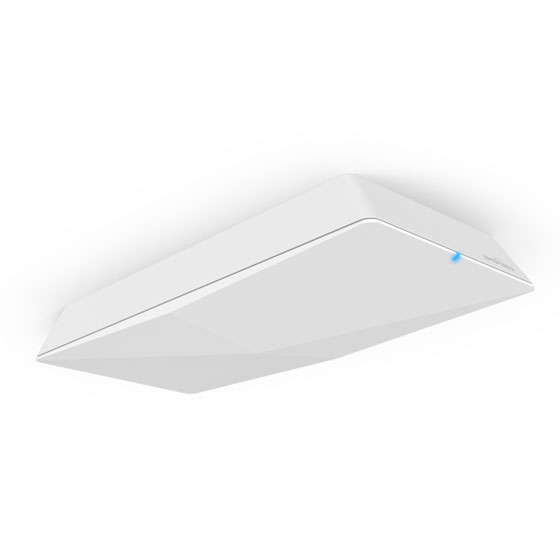

The Impinj xSpan is the first fully encapsulated RFID reader built specifically to look nice and install easily.
ClearStream RFID Software is the only user configurable Fixed RFID Software that can be set up in minutes to track asset tags and inventory tags anytime, anywhere.
Find RFID Tags to use with your xSpan RFID Kit >>

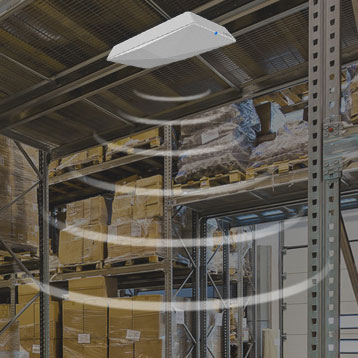

With the Impinj xSpan Reader you can effortlessly track who and what is moving throughout your facility.
Need to know when something checked out of the storeroom and who took it?
Just look it up on your computer or handheld and see ClearStream RFID data directly in your current software system.
If your organization has tools, IT assets, people or anything that you can't afford to lose and needs to be found quickly, this RFID Kit would be a great addition to your current tracking system.
Suggested Applications:
- Student and Child Tracking
- Critical Asset Tracking
- Tool Room Tracking
- Employee Analytics
Features:
- Easily Integrated into any Database
- No Programming Required
- Real Time Monitoring
- Minimal Wiring / Fixed Infrastructure Rain RFID Reader System
- Aesthetically Acceptable for Retail Environments
- Durable for Industrial Environments
- Capable of Running Independently (One Reader Connected to the Database)
* Subscription will auto renew after 1 year.
Impinj xSpan Hardware Specs
- GS1 EPCglobal EPC Radio-Frequency Identity Protocols, Generation-2 UHF RFID Version 2.0.1
- 1,000 ft2 per xSpan unit with Monza R6 based tags (varies with mounting location, tag type and environmental/use case factors)
- 13 dual-polarized beams
- 116° major axis, 75° minor axis 3dB beamwidth
- Ports: 10/100 Ethernet (Supports PoE), USB 1.1 Type A (Host) and B (Device), Serial RJ-45 for console RS-232
- IEC IP50 Sealing and Operating Temperature of -20 to 50 C (-4 to 122 F)
- Dimensions: 18.75 x 8.66 x 3.45 inch
- 5.97 pounds without mounting plate, 7.56 pounds with mounting plate
Impinj xSpan Full Specs - PDF
ClearStream RFID Software Specs
- Stream RFID Tag data to Text, Excel or any ODBC database including SQL Server, MySQL, Oracle, MS Access and more.
- Fields of data collected include EPC, TID, User Memory, Reader Name, Antenna Name, RSSI, Date/Time, Start Event, Tag Event and Count.
- RFID Virtual Site Survey allows for testing of tags, and readers in a virtual environment.
- With the ClearStream Public API users can create their own interface to turn on and off readers.
- GPIO integration allows the use of light-bars, buttons and motion sensors for with settable alerts/events.
Learn More about ClearStream RFID >>
