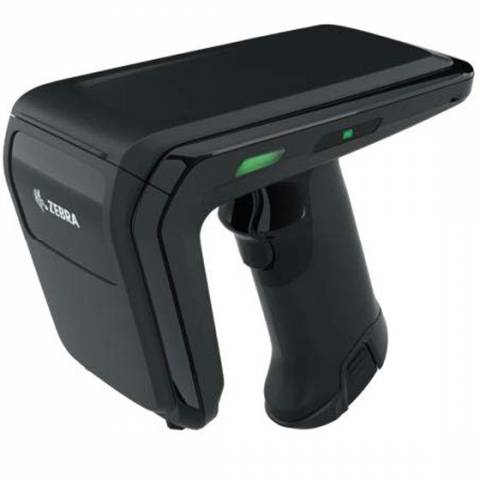

The Zebra RFD4030-G00B700-US UHF Mobile RFID Standard Sled empowers workers in the retail, hospitality, and healthcare industries to work more efficiently, optimizing cycle-counting with industry-best read rates, 20ft+ read ranges, and increased battery capacity. The RFD40 Standard Sled is also ready for the future with easy-to-change tool-free sled adaptors and cradle cups enabling enterprises to add support for new mobile computers as they become available.
Based on Zebra-designed proprietary radio technology, the RFD40 Standard UHF RFID Sled raises the bar for RFID reading performance with a read rate of 1100+ tags per second. The RFD40 Standard sled utilizes a similar antenna to that of the RFD2000 and MC3330xR so users will be familiar with the reading experience. A new tri-function user-programmable trigger allows for quick access to RFID reading and barcode scanning functions. By default, the top trigger is set to control RFID reading operation and the bottom trigger is configured to control the barcode scanner in the Zebra mobile computer.
This capable RFID powerhouse is ready to tackle all your RFID and data capture needs long into the future. Achieve the flexibility and connectivity you need to become more efficient and adapt quickly to new and emerging technologies with the RFD40 Standard UHF RFID Sled from Zebra.
What's Included:
- Zebra RFD40 Standard RFID Sled
- 7000 mAh Lithium Ion Battery
- Blank Cover for eConnex Adaptor Slot
Note: The Zebra RFD40 Standard RFID Standard Sled is only compatible with the Zebra TC21/TC26, TC22/TC27, TC53/TC58, and Zebra EC50/EC55 mobile devices with an 8-pin back connector (Requires eConnex Adaptor sold separately).
- Frequency Range US: 902-928MHz; 0 - 30 dBm (EIRP)
- Standards Supported: EPC Class 1 Gen 2; EPC Gen2 V2
- Nominal Red Range: ~19.7+ ft / ~6+ m
- Dimensions: 5.94 in. H x 3.3 in. W x 6.5 in. L
- Weight: ~19.1oz / 541g
- Drop Spec: Multiple 5 ft./1.8 m drops to concrete, IP54 Sealing
- RFID Engine: Zebra Proprietary Radio Technology
- Fastest Read Rate: 1300+ tags/sec
- Quick-Release, PowerPrecision+ Li-Ion 7000 mAh Battery
- Host Connection: Electronic 8-pin Connection, USB-C Cable, USB Cable Cup
RFD40 Spec Sheet
Your Zebra RFD40 Standard mobile RFID reader comes with a standard 1 year warranty that protects you from manufacturer defects only. That does not cover accidental drops or any damage you do to the device. That is where Zebra OneCare Essential Service comes in. This service covers your RFD40 Standard RFID reader for 3 or 5 years with hassle free repair service keeping your devices running at peak performance.
Zebra RFD40 Standard 3 Year OneCare Essential Coverage
Zebra RFD40 Standard 5 Year OneCare Essential Coverage
If you wish to add this service, Check the option above the "ADD TO CART" button.
What devices does the RFD40 RFID Sled work with?
The RFD40 currently supports the Zebra TC21/TC26 and EC50/EC55 with an 8-Pin back connecter and clips directly into the sled. Also supports Windows based PCs via USB C connection.
Does the RFD40 UHF RFID Standard Sled replace any products in the Zebra portfolio?
The RFD40 Standard Sled replaces the RFD2000 in Zebra's portfolio of UHF RFID handhelds. In contrast to the RFD2000, the RFD40 Standard Sled supports various different mobile computers, and while it is not purpose-built for one specific mobile computer, it provides the integrated look and feel of a purpose-built device.
What is needed to use the RFD40 sled to read RFID tags?
You will need a compatible device as mentioned above and software that is capable of collecting and storing RFID data.
TracerPlus is RFID enabled data collection software allowing you to create RFID ready applications in minutes.
RFD40 Standard Quick Start Guide
RFD40 Standard Product Reference Guide
